Industrial Applications

The BOOST works well for applications where positioning efficiency is critical. Operators never leave the platform for repositioning, and the direct-linked lift mechanism eliminates chains and cables that may fail in industrial environments. In addition, this unit meets OSHA and ANSI standards for hazardous locations with combustible vapors.

Typical applications include the following:

• Paint booths
• Powder coating areas
• Powder booth maintenance
• Sanding and buffing areas
• Vehicle assembly areas

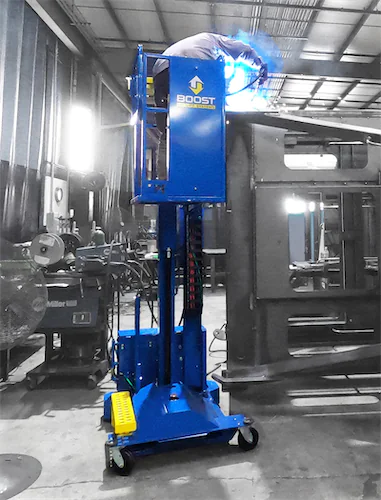

• Welding areas
• Large-scale fabrication and manufacturing
• Product inspection
• Quality assurance work

Technical Capabilities and Performance

The BOOST delivers the positioning range and mobility industrial applications need through the following features:

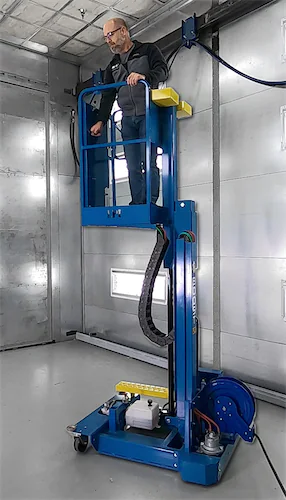

• Vertical platform travel: The platform moves from 25 inches lowered to 10 feet raised, with a working height of up to 16 feet. The single operator capacity handles 300 pounds, and the total unit weight is approximately 1,000 pounds.
• Travel speeds: The X-axis movement at 40 fpm and Z-axis at 22 fpm enhance efficiency without wasted time when repositioning.
• Operational range: The BOOST offers 30 feet of operational travel distance with zero-turn radius capability, even at full height. It is a slab-type machine designed for flat, level surfaces only.
• Air system requirements: The system requires an air connection point and a compressed air source capable of 40 scfm at 90 psi. The 35-foot industrial-grade retractable air hose comes already installed, providing 30 feet of allowable travel.

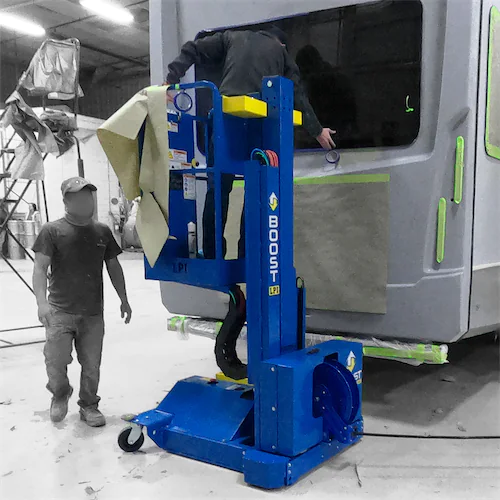

BOOST Self-Propelled Pneumatic Work Platform

View All Product Resources

Standard Features and Available Options

Standard equipment includes hand controls for horizontal and vertical travel, emergency stop, filter and lubricator systems, forklift pockets for transport, and auxiliary air connections for tools.

Field-installed options include:

• Paint-pot carrier kit
• Static discharge reel kit
• Platform tool trays
• 360-degree swivel air connection kit
• Wide-wheel drive kit for grated floors
• Pneumatic vacuum carrier kit for powder coating residue removal
