Surface Finishing and Fabrication Applications

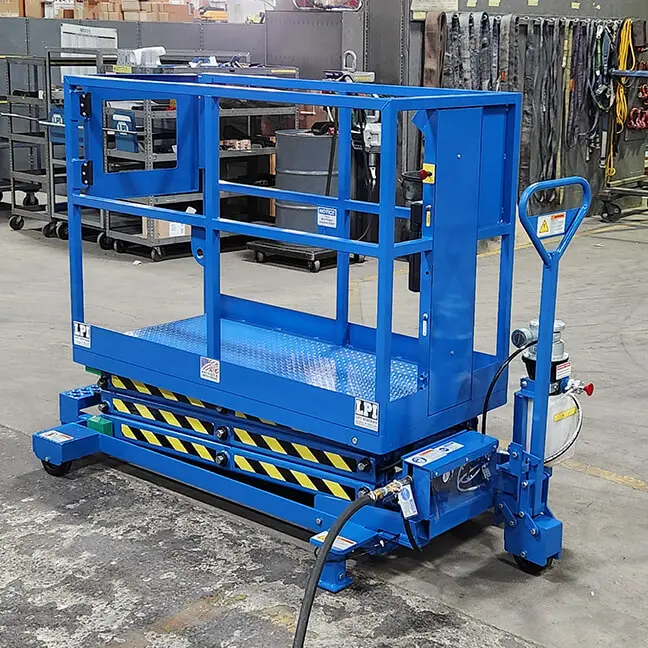

The SPHT handles elevated work for a range of applications, including in environments where electric lifts create potential fire hazards. Primary uses include:

• Paint booth operations: Workers can sand, mask and paint large equipment without constantly repositioning ladders or scaffolding.
• Powder coating: The SPHT moves between coating stations while maintaining explosion-proof operation in hazardous environments.
• Welding and fabrication: Fabricators use the SPHT for structural welding at height, where sparks and grinding require high-performance pneumatic equipment.

_{Technical Capabilities and Performance}

• Positioning: The built-in retractable T-handle with a 6in steering wheel moves the lift like a pallet jack. The handle’s safety switch prevents operation when the handle is down.
• Height range: The work platform travels from 13.5in lowered to 11ft-11in. This range handles most elevated maintenance and coating work without the need for repositioning.
• Vertical ascent speed: 15ft/min
• Platform capacity: The 66-by-30in work surface supports up to 500 pounds. The platform also has 43.5in guard rails and a self-closing entry gate for maximum worker protection.
• Pneumatic power: This unit requires compressed air at 50 scfm at 90 psi for operation. The primary air connection uses a 1/2in NPT fitting, and the auxiliary connection uses 3/8in NPT for powering tools.
• Safety systems: The holding valve prevents uncontrolled descent during operation. All pneumatic components eliminate electrical ignition sources in classified areas.
• Customization: In addition to our standard configuration, our engineers can tailor the SPHT series with various features and options to meet your operational needs.
